PA extruded aluminum profile
(1) Production can be carried out according to customer requirements for conductor specifications and materials;
(2) Final delivery will be in accordance with the specifications determined by both parties.
Category:
Keywords:
Product Details
Description:
| Type: | As per customer requirements | |
| Rated Voltage: | AC 600 V / DC 900 V | |
| Temperature Range: | -40〜+125℃ | |
| Reference Standard: | ISO6722-2011, QC/T 1037-2016, Customer Requirements | |

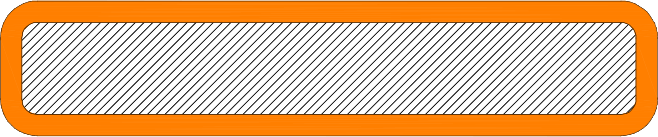

Structural Diagram:
Performance:
■ Acid, alkali and oil resistant.
■ Complies with RoHS and REACH standards.
Application Areas:
Electric Vehicles (Pack), Electrical Boxes
Construction:
| Conductor: | AL1060-O, AL6101-T6/T61/T63, Nickel plating optional |
| Insulation Material: | PA12 |
Technical Parameters:
| NO. | Conductor Cross-sectional Area (mm²) | Conductor Dimensions (mm) | Product Dimensions (mm) |
| 1 | 120 | 30*4.0 | 31.4*5.4 |
| 2 | 100 | 20*5.0 | 21.4*6.4 |
| 3 | 100 | 25*4.0 | 26.4*5.4 |
| 4 | 90 | 18*5.0 | 19.4*6.4 |
| 5 | 85 | 17*5.0 | 18.4*6.4 |
| 6 | 75 | 25*3.0 | 26.4*4.4 |
| 7 | 70 | 20*3.5 | 21.4*4.9 |
| 8 | 64 | 16*4.0 | 17.2*5.2 |
| 9 | 60 | 20*3.0 | 21.2*4.2 |
| 10 | 40 | 20*2.0 | 21.4*3.4 |
