High-voltage line with shielding EV

Category:

Keywords:

Tel:

188 1999 8916（Mr. Lv）

Tel:

150 1807 5974 (Yang)

Products

Consultation

Product Details

Description:

Rating Voltage:	1500VDC / 1000VAC
Temperature Range:	-40~125℃/150℃
Size:	10～120mm2
Reference Standard:	QC/T 1037-2016

Construction:

Conductor:	Bare Copper
Insulation:	XLPE
Shielding:	Tinned Copper
Jacket:	XLPE

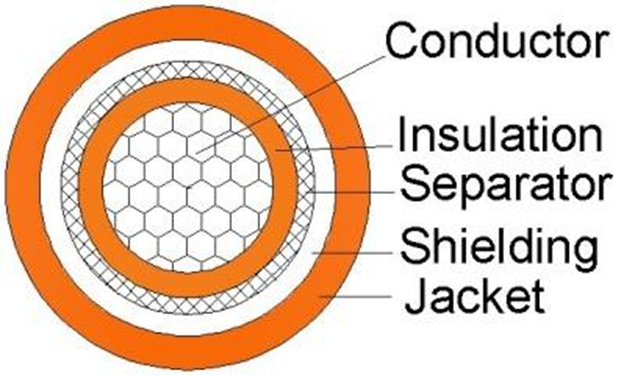

Structural Diagram:

Performance:

■ Flexible and easy installation.
■ Easy stripping and cutting.
■ Resistance to acids, alkalis, and oil.
■ RoHS and Reach compliant.
■ Halogen Free.
■ Excellent EMI, EMC noise reduction.

Application Areas:

Used for EV Motor, PDU, BMS, MCU, Energy storage systems, etc.

Technical Parameters:

Conductor			Insulation		Braiding	Jacket		Conductor Resistance
mm2	No./mm	Diameter (mm)	Thickness (mm)	Diameter (mm)	Shield Coverage	Thickness (mm)	Diameter (mm)	Maximum (Ω/kmat 20℃)
10	322/0.20	4.3	1.00	6.4	24/8/0.12	1.30	9.5	1.82
16	511/0.20	5.6	1.10	8.0	24/9/0.12	1.30	11.3	1.16
25	798/0.20	7.0	1.30	9.8	24/10/0.12	1.50	13.5	0.743
35	1121/0.20	8.0	1.30	11.0	24/10/0.12	1.50	14.5	0.527
50	1596/0.20	9.8	1.50	1.30	24/12/0.12	1.70	17.0	0.368
70	2220/0.20	11.5	1.50	15.0	24/12/0.12	1.70	19.0	0.259
95	3034/0.20	13.2	1.50	16.5	24/12/0.12	1.70	20.5	0.196
120	3811/0.20	15.2	1.50	18.5	24/12/0.12	1.70	22.5	0.153

For detailed information, please contact us.
