High-pressure liquid-cooled aluminum busbar (for high-current charging piles)
(1) Production can be carried out according to customer requirements for conductor specifications and materials;
(2) Final delivery will be in accordance with the specifications determined by both parties.
Keywords:
Product Details
Description:
| Type: | Custom |
| Rating Voltage: | AC 1000 V / DC 1500 V |
| Temperature Range: | -40〜+125℃ |
| Reference Standard: | ISO6722-2011, QC/T 1037-2016, Customer Requirements |
| Withstand Voltage: | 5KV DC / 60S, ≤1mA |
| Flammability Rating: | VW-I（UL758, UL1581） |

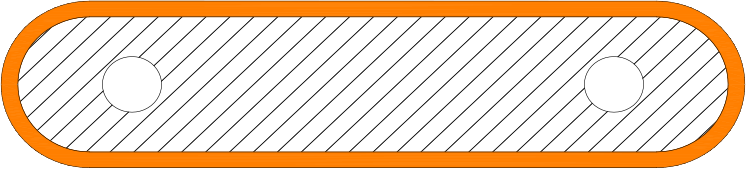

Structural Diagram:
Performance:
■ Acid, alkali, and oil resistant.
■ Compliant with RoHS and REACH standards.
Application Areas:
High-current charging stations.
Construction:
| Conductor: | AL1060-H112, AL6101-T61 / T63 / T64 |
| Insulation Material: | PA12 |
Technical Parameters:
| Number | Cross-sectional Area (mm²) | Conductor Size (mm) | Insulation Thickness (mm) | Rated Current (A) @40℃ |
| 1 | 320 | 42*8.5 | 1.0 | 1000 |
