High-voltage charging extrusion aluminum busbar with shielding
(1) Production can be carried out according to customer requirements for conductor specifications and materials;
(2) Final delivery will be in accordance with the specifications determined by both parties.
Keywords:
Product Details
Description:
| Type: | Customize |
| Rating Voltage: | AC 1000 V/DC 1500 V |
| Temperature Range: | -40～+125 ℃ |
| Reference Standard: | ISO6722-2011, QC/T 1037-2016, Customer Requirements |
| Withstanding voltage | 5KV DC/60S，≤1mA |
| Flame retardant rating. | VW-1(UL758,UL1581) |

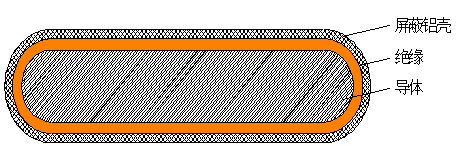

Structural Diagram:
Performance:
■ Acid, alkali, and oil resistant.
■ Compliant with RoHS and REACH standards.
Application Areas:
Suitable for electric vehicles (Pack), electrical boxes, and central air conditioning units
Construction:
| Conductor: | AL1060-H112, AL6101-T61/T63/64 |
| Insulation Material: | PA12 |
Technical Parameters:
| Number | Cross-sectional area (mm²) | Conductor size (mm) | Insulation thickness (mm) | Shielding thickness (mm) |
| 1 | 212 | 6.3*35 | 1.0 | 0.80 |
